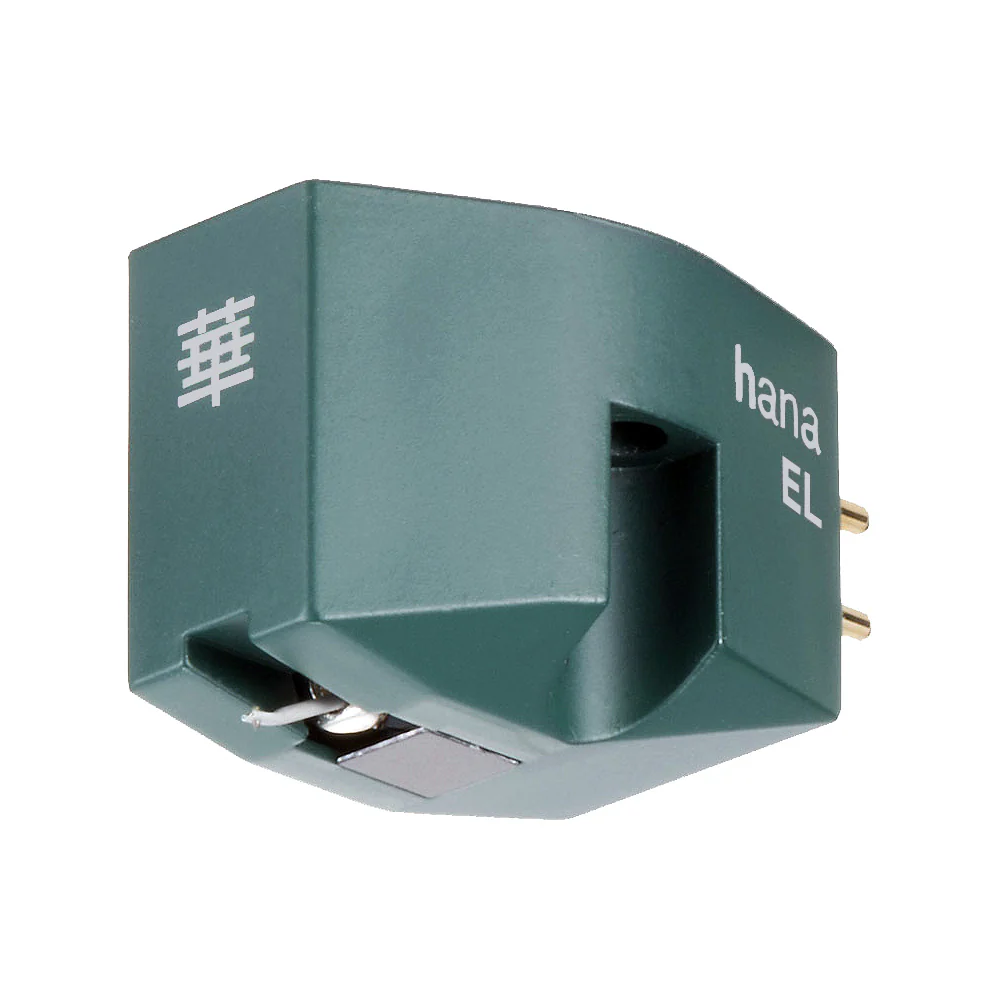

HANA EL MC Cartridge Synthetic Elliptical stylus: Low Output

The Hana EL cartridge, designed and built-in Tokyo, has a synthetic Elliptical diamond stylus. The body is manufactured from a composite low resonance plastic material in pleasant dark green. Looking deeper into more details, the stylus is fitted to a high rigidity aluminium cantilever with a cross-shaped armature, offering super transparency and excellent trackability.

Designed by the veteran cartridge manufacturer Excel Sound Corporation, this competitively priced Low output moving coil cartridge brings great quality sound referenced against similar priced cartridges. The Elliptical Low output offers 0.5mv/1KHz output.

All of the Hana series have been developed with significance placed on easy use and set-up, as well as high-performance reproduction. Nonetheless, Hana's high output versions, EH and SH, supply 2mV high output, so that they can be directly connected to MM phono input for vinyl reproduction.

Model	Hana EL
Stylus	Synthetic Elliptical
Cantilever	Aluminium
Output Level	0.5mV/1kHz
Output Balance	<2dB/1kHz
Vertical Tracking Force	2 gr.
Trackability	70μm/2gr.
Channel Separation	25dB/1kHz
Frequency Response	15~25,000Hz
Impedance	30Ω/1kHz
Suggested Load Impedance	>400Ω
Cartridge Weight	5 gr.
Body Color	Moss Green
